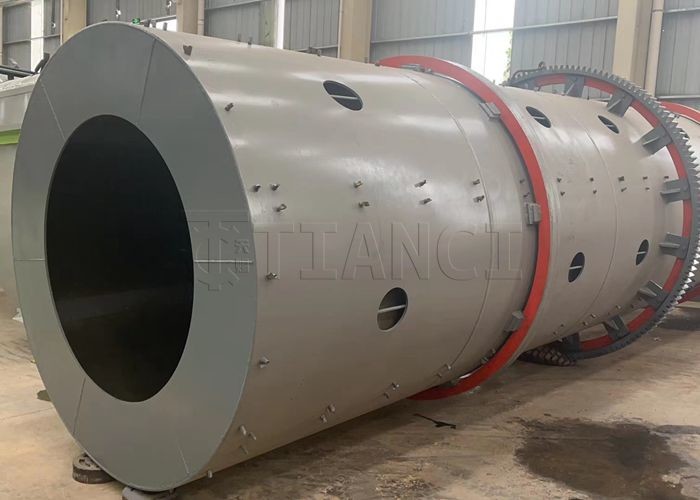

    Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine

    Ask Lasest Price
    Brand Name : Tianci
    Model Number : ZG
    Payment Terms : T/T
    Supply Ability : 30 set per month
    Certification : CE SGS ISO9001
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine

    Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine

    Product Description:

    The drum granulator can not only be used for the mixed granulation of various chemical compound fertilizer powder raw materials, but also for the granulation of organic compost. The material is added from the feeding end, processed by the special structure inside the cylinder to form particles, and finally flows out through the discharge port. Due to the continuous entry of materials and the continuous rotation of the granulator, large-scale production can be achieved.

    Features:

    • High granulation rate, with a small amount of return material, can be re granulated;
    • Heating with steam to increase the temperature of the material, reducing the moisture content of the material after balling, and improving the drying efficiency;
    • Using rubber engineering plastic as the inner lining, the raw material is not easy to stick to the cylinder, and it plays a role in anti-corrosion and insulation;
    • Large output, low energy consumption, and low maintenance costs;
    • Long service life, convenient operation and maintenance.

    Technical Parameters:

    Model
    Dip angle
    (°)

    Internal diameter

    (m)

    Length
    (m)
    Speed
    (r/min)
    Power
    (kw)
    Capacity
    (t/h)
    Outline dimension
    (L*W*H)
    ZG1.2*42-2.51.24175.51-34.6*2.2*2.0
    ZG1.4*52-2.51.45147.53-54.8*2.8*2.3
    ZG1.5*62-2.51.6611.5115-87.0*3.2*3.1
    ZG1.8*72-2.51.8711.5158-108.5*3.5*3.3
    ZG2.0*82-2.52.081118.510-159.1*3.6*3.5
    ZG2.2*82-2.52.2810.52215-209.5*4.4*3.9

    Applications:

    Suitable for processing powdery materials into ball type granules, widely used in compound fertilizer plants, organic fertilizer plants, sludge waste treatment plants and mines, chemical industry, cat little, animal feed and other industries.



    Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine

    Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine


    Ball Granules Organic Compound Fertilizer Rotary Drum Granulator Machine
